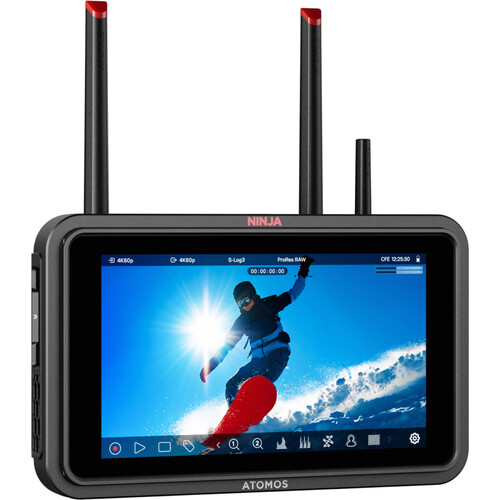

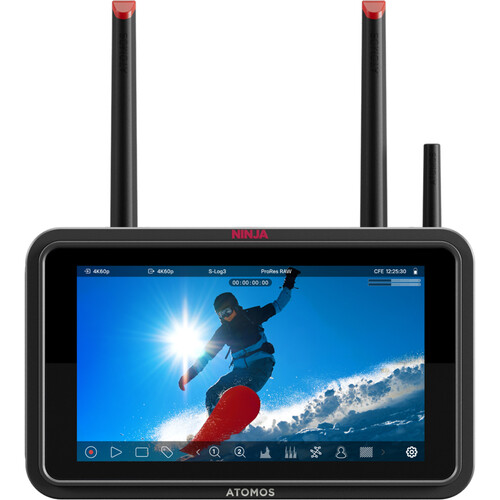

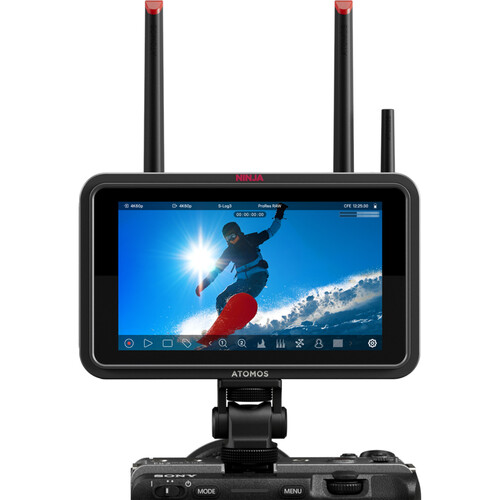

Atomos Ninja TX 5.2" HDMI/12G-SDI Wi-Fi-Enabled Camera Monitor/Recorder

Click to enlarge

Atomos Ninja TX 5.2″ HDMI/12G-SDI Wi-Fi-Enabled Camera Monitor/Recorder

Name: Atomos Ninja TX 5.2" HDMI/12G-SDI Wi-Fi-Enabled Camera Monitor/Recorder
SKU: 87968
Availability: InStock

₪4,790.00

Compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Overview

Specs

Overview

Specs

Additional information

Brand	Atomos
Monitor Type	On Camera Monitor , Recording Monitor
Connection Type	12G-SDI , HDMI

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review “Atomos Ninja TX 5.2″ HDMI/12G-SDI Wi-Fi-Enabled Camera Monitor/Recorder”

Related Products

Atomos NEON 17″ 4K HDR Monitor/Recorder

Monitors and Recorders

₪10,900.00

Atomos Ninja V+ 5.2" 8K HDMI H.265 Raw Recording Monitor

Atomos Ninja V+ 5.2″ 8K HDMI H.265 Raw Recording Monitor

Monitors and Recorders

₪6,514.00

Atomos Sumo 19″ SE HDR

Monitors and Recorders

₪9,999.00

Blackmagic Design Video Assist 3G-SDI/HDMI 5" Recorder/Monitor

Blackmagic Design Video Assist 3G-SDI/HDMI 5″ Recorder/Monitor

Monitors and Recorders

₪1,790.00

Blackmagic Design Video Assist 5" 12G-SDI/HDMI HDR Recording Monitor

Blackmagic Design Video Assist 5″ 12G-SDI/HDMI HDR Recording Monitor

Monitors and Recorders

₪2,790.00

Lilliput A5 5″ 4K HDMI Full HD

Monitors and Recorders

₪798.00

Panel Type	IPS-Type LCD
Display Size	5.2″ / 13.2 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Touchscreen	Yes
Maximum Brightness	1500 nits / cd/m²
Color Support	1.07 Billion Colors (8-Bit+FRC)
HDR Support	Yes: Hybrid Log Gamma
Color Gamut	100% Rec. 709
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Image Flip, OSD Flip, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

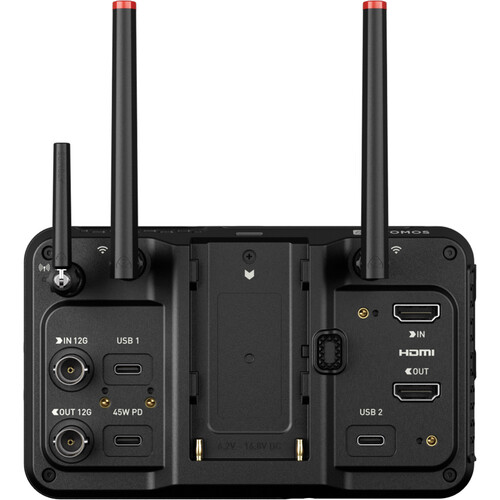

Antenna I/O	3x RP-SMA

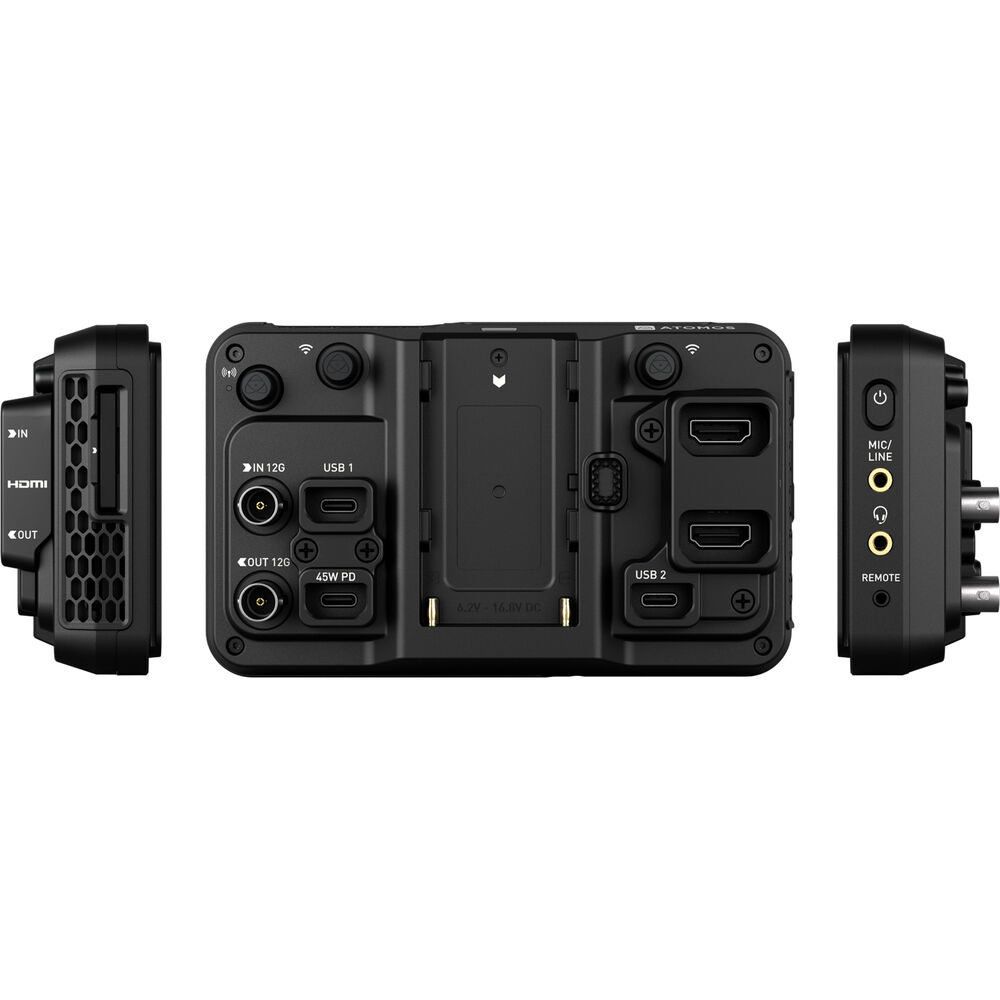

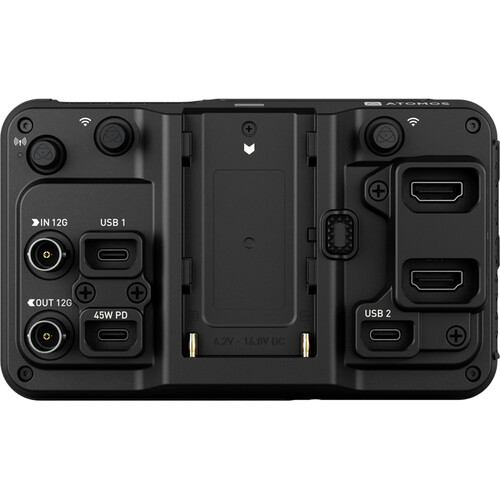

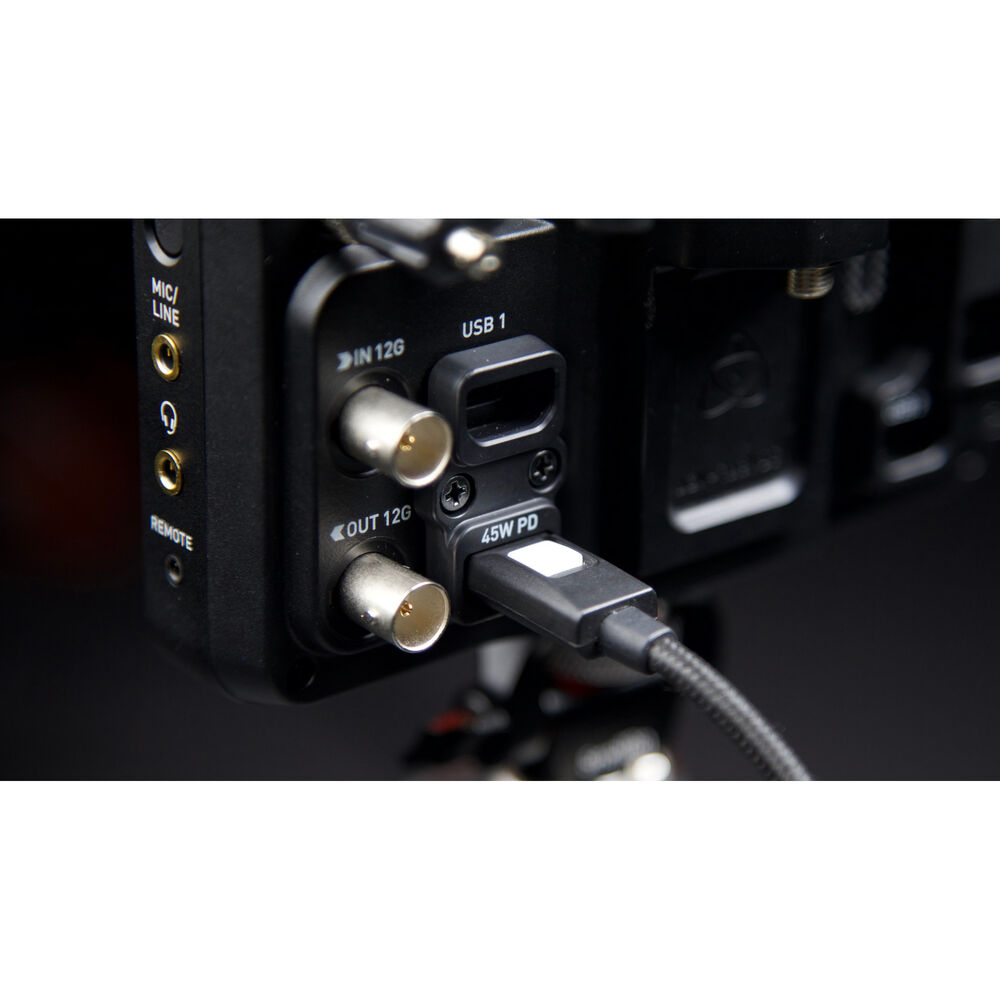

Video I/O	1x HDMI 2.0 Input 1x HDMI 2.0 Output 1x BNC (12G-SDI) Input 1x BNC (12G-SDI) Output
Embedded Audio	HDMI/IP/NDI/SDI/USB

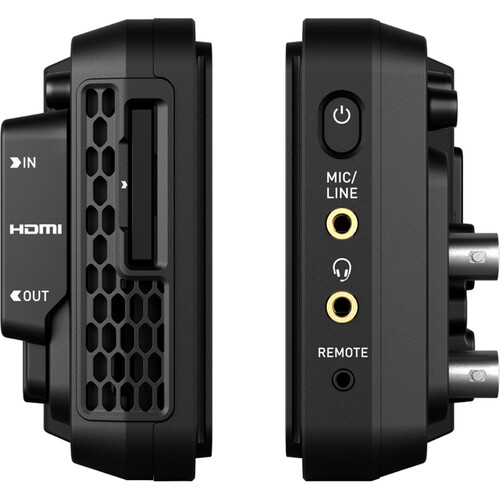

Audio I/O	1x 1/8″ / 3.5 mm Input 1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x USB-C (16.8 VDC) Input
Other I/O	2x USB-C Input/Output [Shared with Firmware/LUT Upload/Record/Power] 1x 2.5 mm (LANC) Input

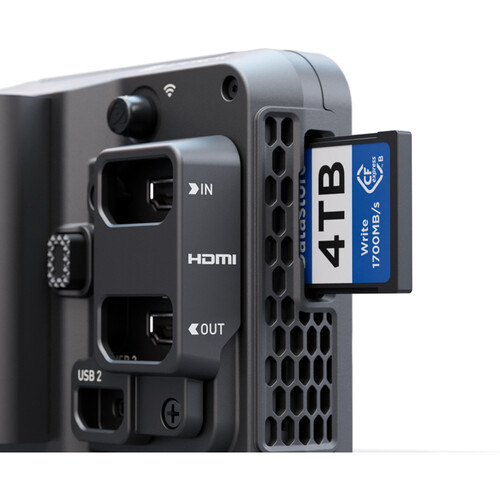

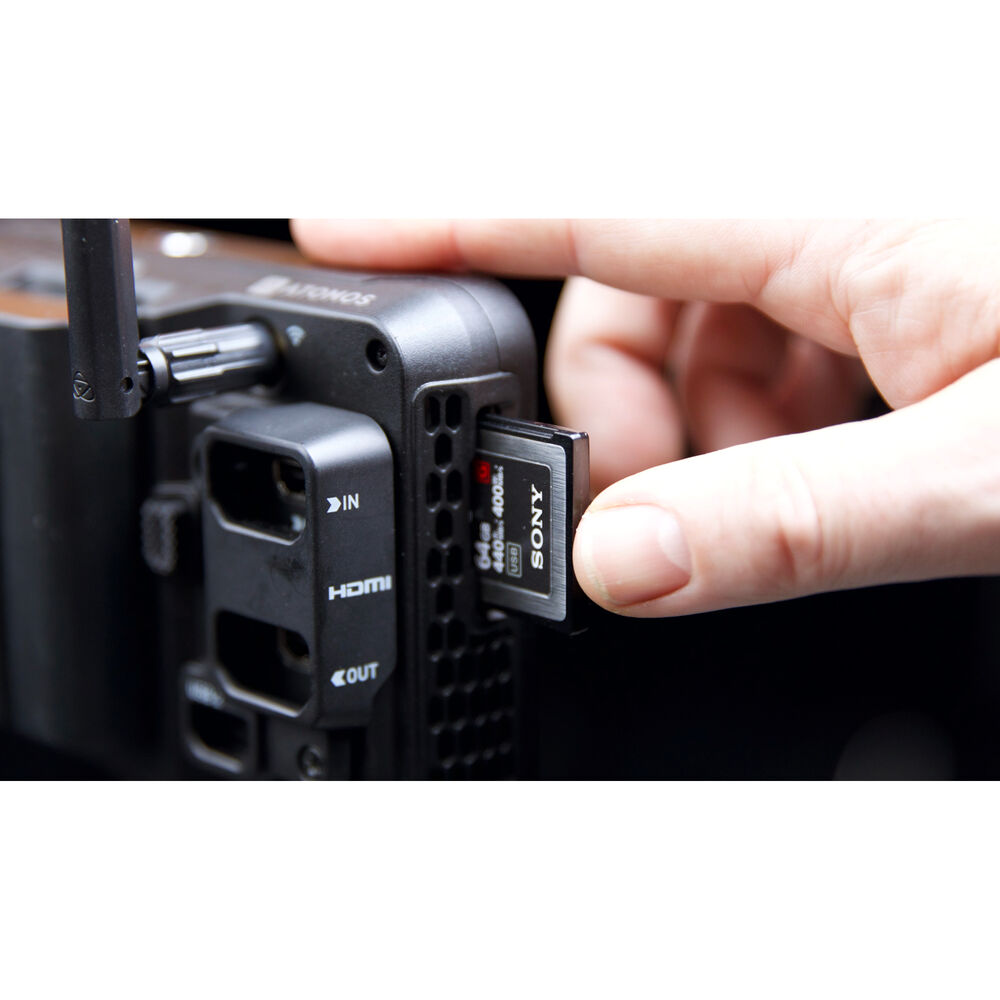

Media/Memory Card Slot	Single Slot: CFexpress Type B [Record/LUT/Firmware]

Wi-Fi	Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Mobile App Compatible	Yes: iOS Only App Name: AtomRemote

Video Format	HDMI (8/10/16-Bit 4:2:2) 8K Raw: 30 6K Raw: 60/30 3.5K Raw: 60 DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98 1080PsF 1080i: 60/59.94/50 720p: 60/59.94/50
Video Signal Conversion	HDMI to SDI SDI to HDMI
Audio Format	24-Bit
Wireless Video Compression	Compressed
Timecode Support	Yes

Pulldown Conversion	2:2, 3:2
Camera Trigger	SDI, HDMI
Pre-Roll Record	Full HD: 8 Seconds 4K: 2 Seconds
Encoding Formats	x DNxHD 36, 145, 220x DNxHR HQ, HQX, LB, SQ ProRes 422, 422 HQ, LT, Raw, Raw HQ H.265 420, 422, HQ, LQ, MQ
Maximum Audio Tracks	8
Metadata Tagging	Yes
Reference Input	No

Input Power	6.2 to 16.8 VDC
Battery	1x L-Series Mount on Fixed Plate
Power Consumption	30 W

Operating Conditions	Up to 104°F / 40.0°C
Material of Construction	Aluminum, Plastic
Dimensions	5.9 x 3.6 x 1.4″ / 151 x 92 x 36 mm
Weight	14.1 oz / 400.00 g
